Nominal Voltage

48V/51.2V (optional)

Rated Capacity

200Ah

300Ah

400Ah

500Ah

500Ah

Storage Power

10KWH

15KWH

20KWH

25KWH

30KWH

IR （AC）

≤ 60mΩ

Cycle Life

5000cycles

Design Life

≥10 years

Charging Voltage

53V ± 0.5V ( 15S);56.0V± 0.5V ( 16S)

Max working Current

150A

200A

300A

300A

300A

Discharge Cut-off Voltage

45V± 1.0V ( 15S);48V± 1.0V ( 16S);

Operation Temperature Range

0℃~40℃

Storage Temperature

-20℃~40℃

Size (mm)

483*460(510)*186

483*460(510)*372

483*460(510)*558

483*460(510)*744

483*460(510)*930

Weight

110kg

165kg

230kg

      285kg

340kg

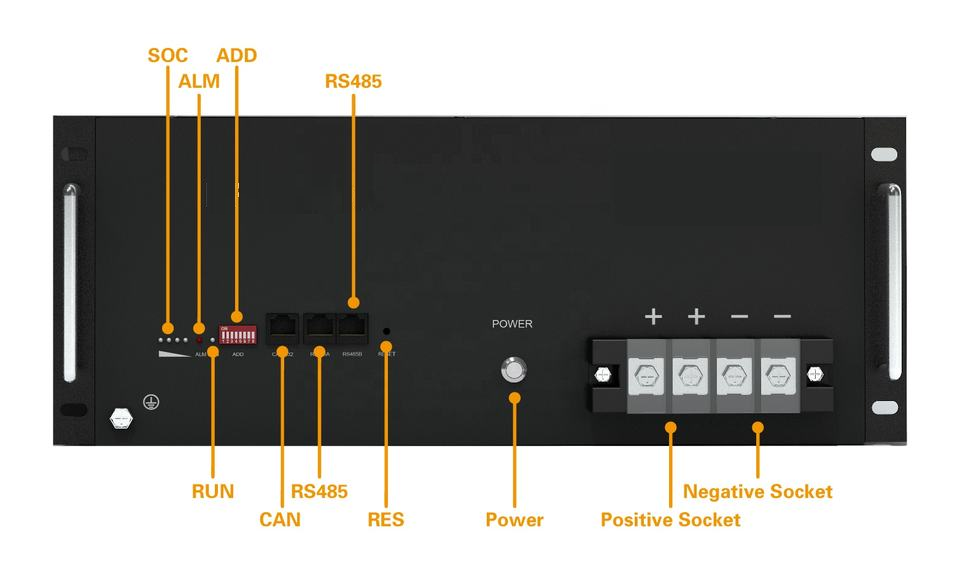

Communication

RS232 -PC,RS485 (B ) -PC

RS485 (A ) -Inverter, Canbus -Inverter

Quantity in Parallel

Max 10pcs PACK in parallel

Certification

UN38.3,MSDS,UL1973 (Cell),IEC62619 (Cell)
