Model
HP-5KW
HP-7KW
HP-10KW
Nominal Voltage
51.2V
Rated Capacity
5120Wh
7680Wh
10240Wh
IR (AC)
≤ 30mΩ
Cycle Life
5000 cycles
Design Life
10 years
Charging Voltage
56.0V± 0.5V
Max working Current
100A/150A (Optional)
Discharge Cut-off Voltage
45V± 0.2V
OperationTemperature
Range
Charge:0 ℃~40℃
Discharge:-20℃~40℃
Storage Temperature
-20℃~40℃

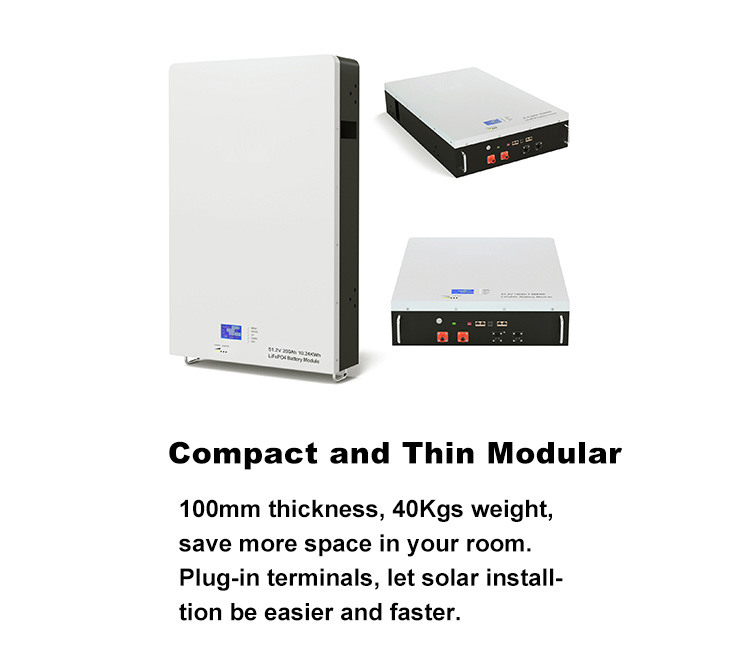

Size
680 x485 x 180 (220)mm
Weight Approximate
62kg
79kg
98kg

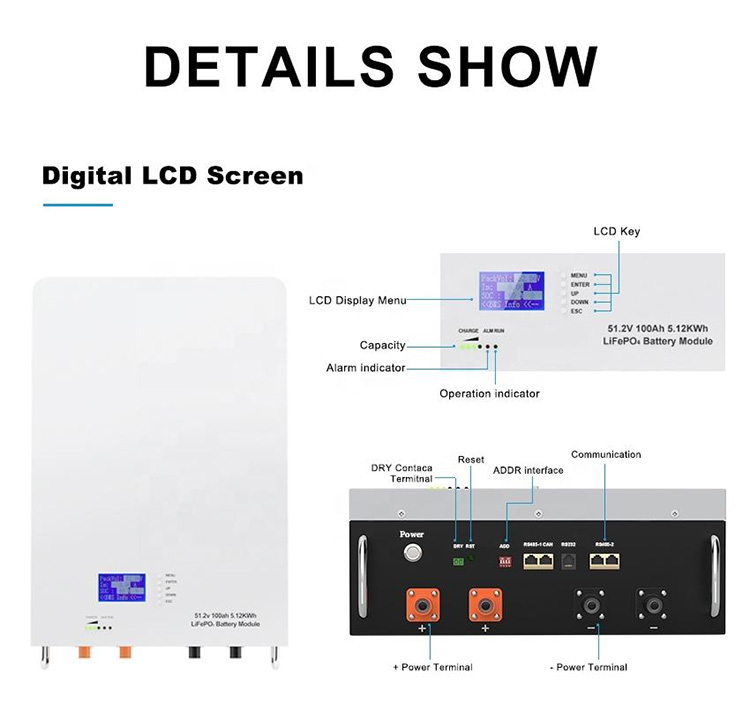

Communication
RS232 -PC,RS485 (B) -PC
RS485 (A ) -Inverter, Canbus -Inverter

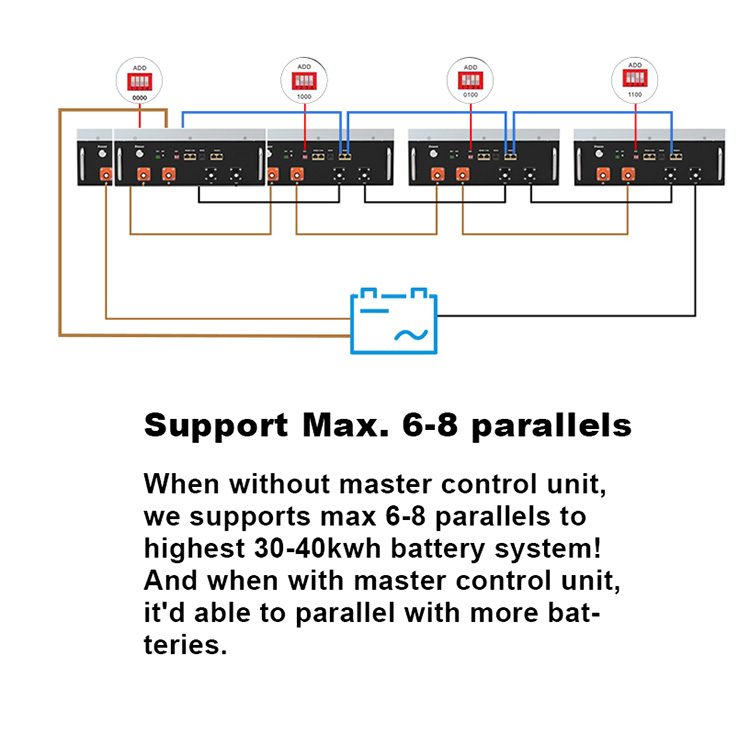

Quantity in Parallel
Max 10pcs PACK in parallel
Certification
UN38.3, MSDS, UL1973 (Cell), IEC62619 (Cell)
